Installing the oil feed line for the engine oil cooler on the radiator

• Replace O-ring (2) at the engine oil cooler line (1).

  Parts:  O-ring

• Coat O-ring (2) with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace O-ring (1).

  Parts:  O-ring

• Coat O-ring (1) with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

• Thread in and position the oil supply line (2).
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the engine oil cooler lines (1) on the engine oil cooler (3).
• Tighten nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

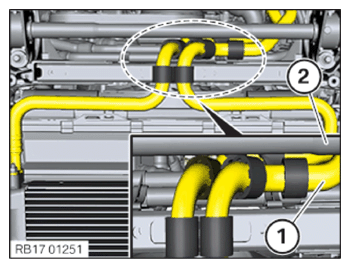

• Engine oil lines (1) must run parallel to the anti-roll bar (2).
• The black decoupling elements must be positioned as shown in the illustration.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING ANTI-ROLL BAR ON FRONT AXLE SUPPORT .
• Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to CHECKING ENGINE OIL LEVEL .
