Removing the sealing sleeve for the transmission housing
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to REMOVING TRANSMISSION OIL PAN (ALL WHEEL DRIVE VEHICLE) (GA8HP50Z, GA8HP51Z) .
- Refer to REMOVING THE OIL VOLUME RESERVOIR (GA8HP50Z, GA8HP51Z, GA8HP75Z, GA8HP76Z, GA8HP95Z) .
CAUTION:
Materials harmful to health
.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
- Turn the connector (1) in arrow direction and detach it.
- Do not touch pins.
- Release cable from holders.
- Insert the special tool 0 494 213 (24 2 390)
in arrow direction in the sealing sleeve (1).

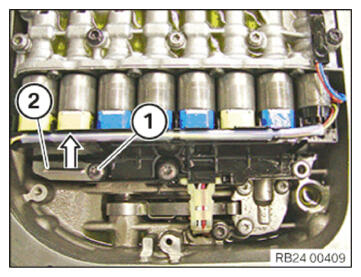

- Release the screw (1) and unlock the sealing sleeve with the slide (2).
- Observe the installation position of the sealing sleeve (1).
- Pull out the sealing sleeve (1) in arrow direction.
