Installing cover (Sports steering wheel)
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

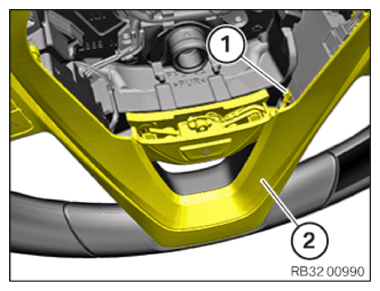

- Position the cover (2).
- Connect the connector (1) for the steering-wheel heating and lock it.
- Secure the connector (1) for the steering wheel heating to the holder.

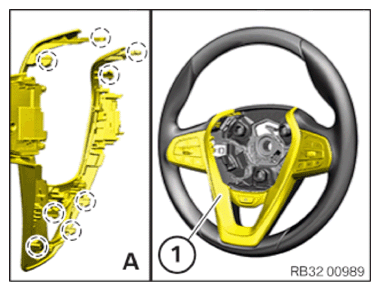

- Check latch mechanisms (A) for damage.
The latch mechanisms (A) must not be damaged or missing.
- Carefully clip in cover (1) at catches (A).
- Tighten screws (1) on the back of the steering wheel.
TIGHTENING TORQUE SPECIFICATION
| Decorative trim to steering wheel | ||
| Screw TS5x12 | tightening torque | 1.5 Nm |
- Connect connectors (1) and lock.
Follow-up work
- Refer to IF INSTALLED: INSTALLING THE SHIFT PADDLES FOR THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
