Adjusting track

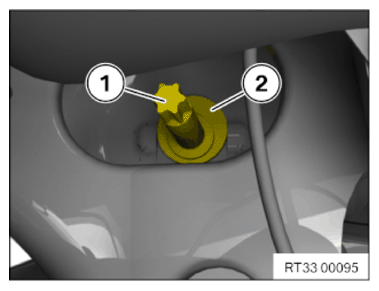

- Turn the eccentric screw (1) and use the eccentric (2) to adjust the track to the setpoint value.
- Tighten the nut (1) in the NORMAL POSITION .
NOTE:
Counter support the eccentric screw.
TIGHTENING TORQUE SPECIFICATION
| Control link to rear axle support | ||
| M12 Replace the eccentric screw, eccentric washer and nut. Tighten in normal position. |
tightening torque | 108 Nm |
Follow-up work
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
- Refer to ADJUSTING THE FRONT RADAR SENSOR (FRS) .
