Removing the front rubber mount for the left and right rear axle support
NOTE:
Perform the steps on the left and right side.

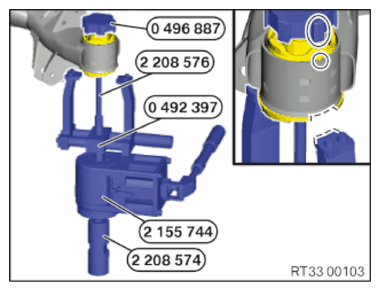

- Complete the special tool 0 492 397 (33 4 140)
in conjunction with special tools 0 496 403 (33 0 012) and 0 492 406 (33 4 149)
as shown
.
- Align the notch on the special tool 0 496 887 with the notch on the rear axle support in the marked areas.
- Pull out and remove the front rubber mount from the rear axle support using special tools 0 496 887
, 0 492 397 (33 4 140), 2 208 576, 2 155 744 and 2 208574
.
