Installing the front rubber mount for the rear axle support on the left and right
NOTE:
RISK OF DAMAGE
Damage to the rear axle support.
Damage to the rear axle support due to non-compliance with the direction of extraction and the direction of insertion of the rubber mount.
Damage to the rear axle support.
Damage to the rear axle support due to non-compliance with the direction of extraction and the direction of insertion of the rubber mount.
- Adherence to the pull-out and pull-in direction is absolutely mandatory.
NOTE:
Perform the steps on the left and right side.

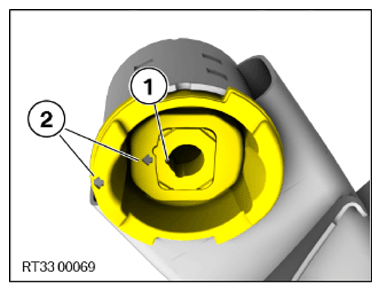

- Ensure that notch (1)
and arrows (2)
of the front rubber mount point in the driving direction.

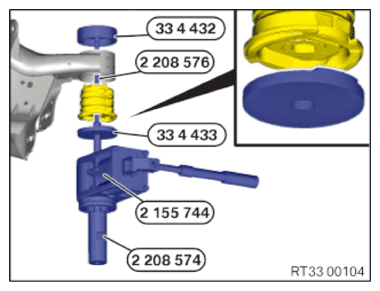

- Align the recesses at special tool 0 494 972 (33 4 433) with the rubber mount.
- Pull the front rubber mount as far as it will go with the special tools 0 494 971 (33 4 432), 0 494 972 (33 4 433) 2 155 744 2 208 574 and 2 208 576 .
- Remove the special tools for inserting the rubber mount.
