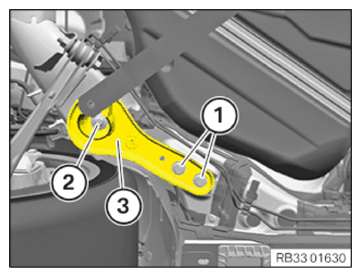

Install thrust arm

• Feed the thrust arm (3) in and position it.
• Replace screws (1) and (2).

  Parts:  Screws

• Insert the screws (1) and (2).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Rear axle carrier to body
  M12 Replace screws.	tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Thrust arm on body
  M10 Replace screws.	Joining torque	47 Nm
  	Angle of rotation	45°

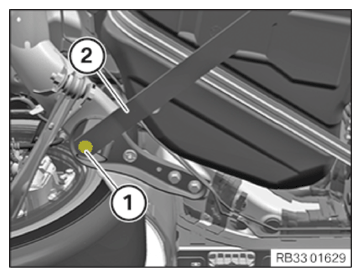

• Pilot the screw (1) in the reinforcement strut (2) and tighten it.
  TIGHTENING TORQUE SPECIFICATION



  Reinforcement strut to thrust arm/body
  M8 Replace screws.	Tightening torque	28 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TANK COVER .
• Refer to INSTALLING TANK COVER .
