Installing tank cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

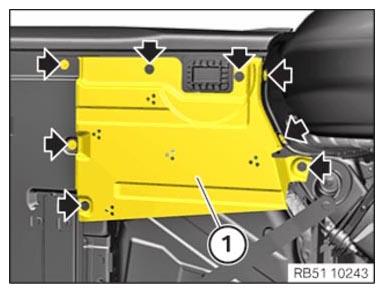

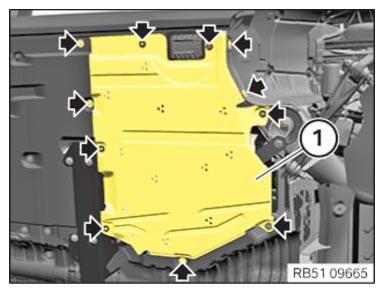

- Position the tank cover (1).
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Undershield | ||
| Screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
