33 11 Rear Differential Housing And Drive Flange Seal
>>
33 11 272 Replacing the cover gasket on the rear axle M sports differential
>>
Removing the seal and cleaning the sealing surfaces
Removing the seal and cleaning the sealing surfaces
Remove the seal on the final drive cover and housing with the special tool
0 495 102 (11 4 470)
.

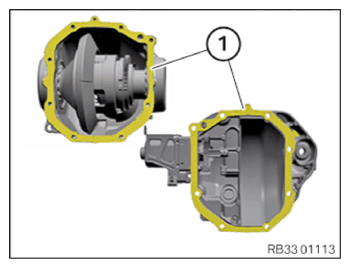

Clean the sealing surface
(1)
at the housing cover and the rear axle differential housing.
Courtesy of BMW OF NORTH AMERICA, INC.
