Apply liquid sealing compound
NOTE:
TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
- Position the liquid sealing compound (1)
on the special tool as depicted 2 469 803
.
Parts: Liquid sealing compound

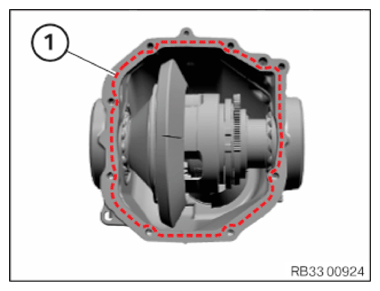

SEALING COMPOUND SPECIFICATIONLoctite 5970 liquid sealing compound Processing time >10 minutes at room temperature 50 ml, Cartridge 83190404517 - Apply liquid sealing compound along the dashed line (1)
on the sealing surface on the housing of the rear axle differential.
The sealing bead must run along the inner edge.
