Replacing the O-ring for the bearing bracket

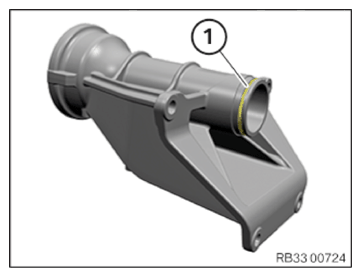

Loosen and remove O-Ring (1) .
Replace O-ring (1) .
Parts: O-ring
Fit the O-ring (1) on the bearing bracket.

G15912972

Courtesy of BMW OF NORTH AMERICA, INC.
