Installing the anti-roll bar link
NOTE:
TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.
Incorrect assembly is possible. Ensure correct installation position.

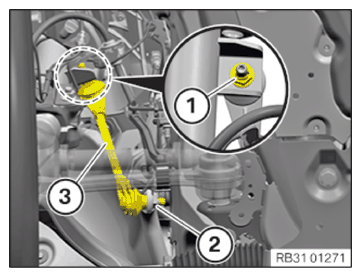

- Position the anti-roll bar link (3) on the anti-roll bar and the spring strut.
- Replace the nuts (1) and (2).
Parts: Nuts
- Tighten nuts (1) and (2). If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATION
| Front anti-roll bar link to anti-roll bar/spring strut | ||
| M10 Replace nut. |
tightening torque | 56 Nm |
