Removing the crash lever
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .

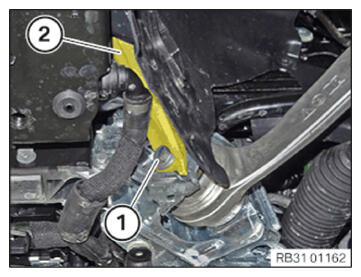

- Loosen screw (1).
- Thread out the screw (1) and remove it.
- Feed out the crash lever (2) and remove.
