Installing the front upper seat belt
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
Clean all belt fittings with microencapsulated male and female threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all belt fittings with microencapsulated male and female threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.

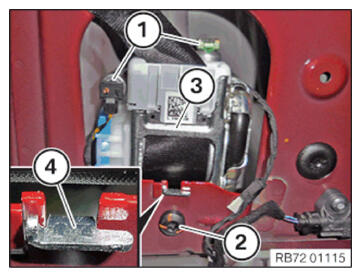

- Carefully insert the front upper seat belt (3) into the body
- The retainer (4) must be positioned as shown.
- Replace the screw (2).
Parts: Screw
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Seat belt retractor to body M10 screw Replace screw Tightening torque 42 Nm - Connect connectors (1) and lock.

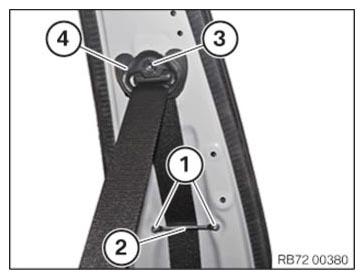

- Position seat belt guide bracket (4).
- Tighten down screw (3).
- Position the sliding bar (2).
- Tighten down screws (1).
Follow-up work
- Refer to INSTALLING B-PILLAR TRIM PANEL .
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
