Install B-pillar trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

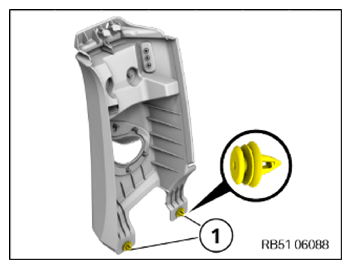

Check clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

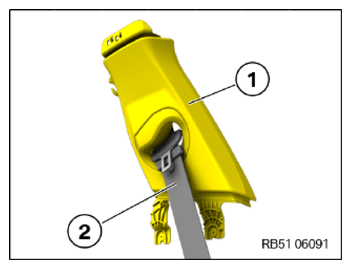

Guide upper seat belt (2) into B-pillar trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

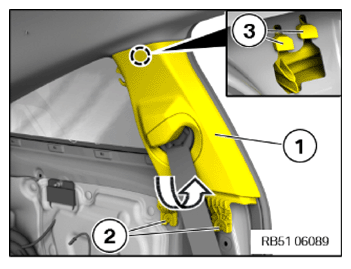

Insert B-pillar trim panel (1) into guides (3) and under the lip of edge protection in the arrow direction.
Clip the B-pillar trim panel in (1) with the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

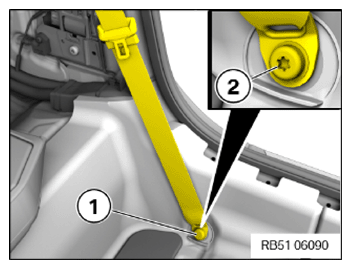

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

End lining to body
screw	Tightening torque	42 Nm

Install the protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
