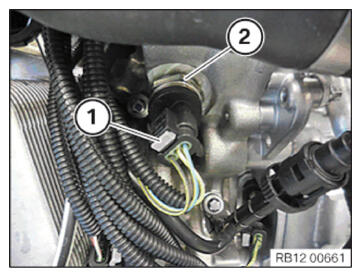

Installing the oil pressure switch

• Guide in and install oil pressure switch (2).
• Tighten the oil pressure switch (2) with the special tool 0 496 106 (11 8 720) .
  TIGHTENING TORQUES SPECIFICATION



  Oil pressure switch to crankcase
  Sensor	tightening torque	16.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (1).

  The connector (1) must engage audibly.

• Feed in and position the manifold bracket (2).
• Hand-tighten the bolts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

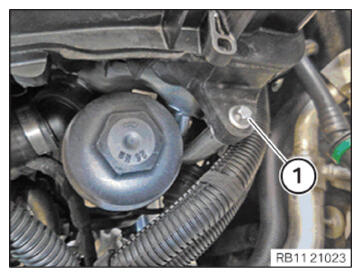

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Manifold bracket on intake plenum
  M6x25	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

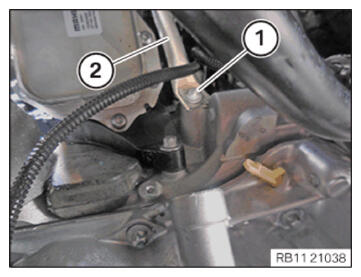

• Tighten screws (1) at the manifold brackets (2).
  TIGHTENING TORQUES SPECIFICATION



  Manifold bracket to crankcase
  M6x16	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CHECKING ENGINE OIL LEVEL .
