Installing the alternator
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

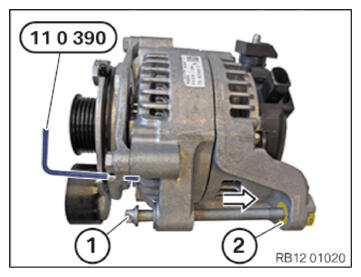

- Make sure the special tool 0 496 268 (11 0 390) is seated correctly.
- Slightly push back the threaded support sleeve (2) in the direction of the arrow to facilitate the installation of the alternator.
- Screw the screw (1) into the threaded support sleeve (2).
- Press back the threaded support sleeve (2) using the bolt (1).
- Once again unscrew the screw (1) from the threaded support sleeve (2).

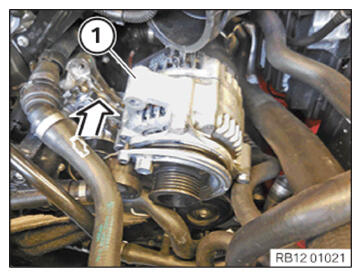

- Feed in and position alternator (1) in arrow direction.

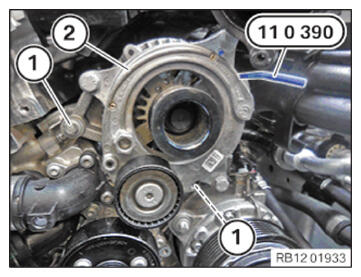

- Install the alternator (2).
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Alternator on component carrier M10x75 tightening torque 38 Nm M10x125 tightening torque 38 Nm M10x90 tightening torque 38 Nm - Make sure the special tool 0 496 268 (11 0 390) is seated correctly.

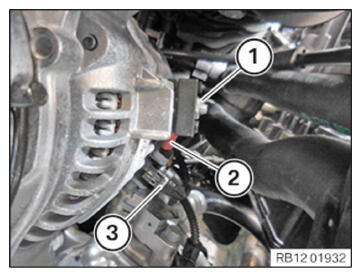

- Insert and install the positive battery cable (2).
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION
Positive battery cable to the alternator M8 Tightening torque 19 Nm - Connect and lock the connector (3).
- The connector (3) must engage audibly.
- Insert and install the holder (2).
- Ensure that the lock (1) engages audibly

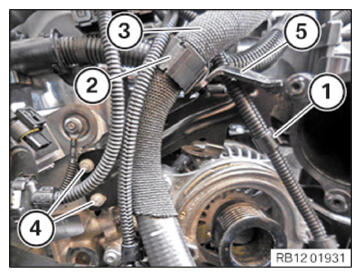

- Feed in and position holder (5).
- Tighten down screws (4).TIGHTENING TORQUES SPECIFICATION

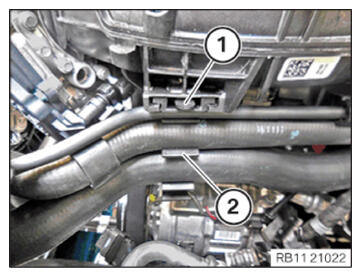

Manifold bracket for intake air at cylinder head M6X16 Tightening torque 8 Nm - Feed in and install coolant line (3) on the clamp (2).
- Secure clamps (2).
- Secure the clamp (1).
Follow-up work
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
- Refer to INSTALLING THE THROTTLE BODY .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to WHEN REPLACING THE ALTERNATOR/ALTERNATOR REGULATOR: RESET GENERATOR STATISTICAL DATA .
