Installing the left windshield washer jet

Check

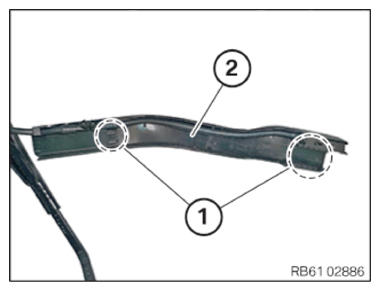

• Check the detents (1) at the windshield washer jets (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Detents (1) are damaged.

  Measure

  • Replace the windshield washer jets (2).

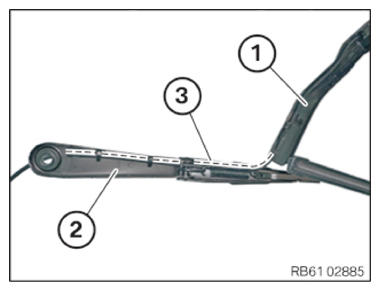

• Guide the windshield washer jets (1) with washer fluid hose (3) into the wiper arm (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

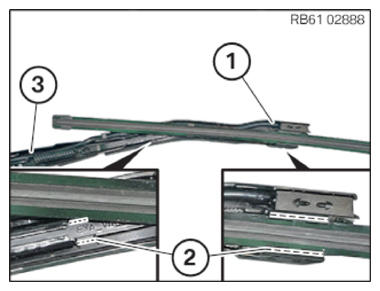

• Position and lock the windshield washer jets (1) in place on the wiper arm (3).

  The detent (2) must snap in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

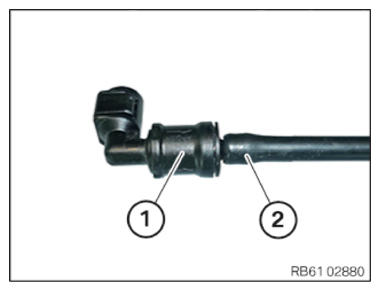

• Connect the quick-release coupling (1) with the washer fluid hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.
