Remove wiper console

Preliminary work

• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVING LEFT AND RIGHT WIPER ARM .
• Refer to REMOVING WINDSHIELD PANEL COVER .

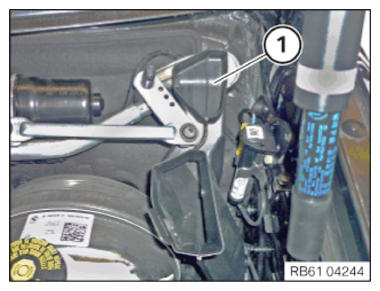

• Remove the water drain channel (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

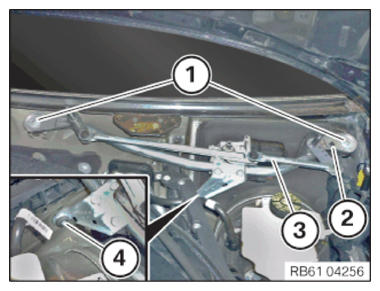

• Loosen nuts (1).
• Unclip the cable clip (2).
• Feed out and lift up the wiper console (3) from the guide (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

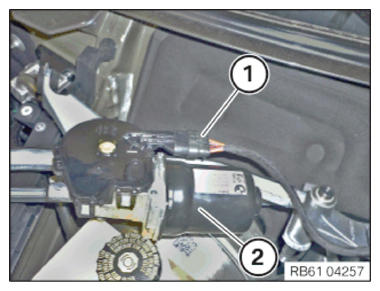

• Unlock plug connection (1) and disconnect.
• Remove the wiper console (2).

Courtesy of BMW OF NORTH AMERICA, INC.
