Installing the antenna for the Car Access System (CAS)

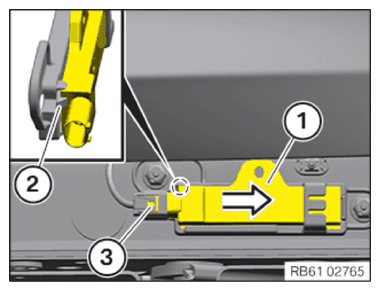

- Install the antenna (1) in arrow direction.
- Check that the detent (2) is fitted correctly.
- Connect connectors (3) and lock.
Follow-up work
- Refer to INSTALLING THE DOOR SILL TRIM PANEL .
- Refer to INSTALLING THE FRONT SILL TRIM .
