Installing the luggage compartment antenna

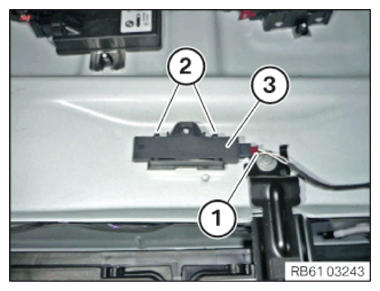

• Position the luggage compartment antenna (3) correctly.

  The detents (2) must engage.

• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
