Install the sensor line for top contactless trunk opening

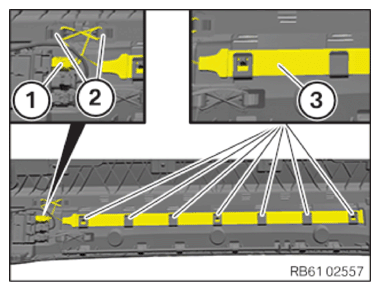

- Clip in top sensor line (3) from above.
- Fasten the cable at the clips (2).
- Connect connector (1).
- Position the brace for the rear bumper (2) on the support.
- Install the expanding rivet (1).
- Clip in the cable bracket (2) on the inside of the brace for the rear bumper (3).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Rear bumper cover mount to support for rear bumper | ||
| Hexagon screw for thermoplastic | Tightening torque | 2.6 Nm |
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
- Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (PARTIALLY REMOVED) .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
