Removing the low beam sensor

Preliminary work

NOTE: RISK OF DAMAGE
Damage to silicone surface.
A damaged silicone surface can lead to malfunctioning of the rain-light-solar-condensation sensor.

Do not tap or damage the silicone-coated surface on the rain-light-solarcondensation sensor.
After loosening lock, wait approx. 30 min. at 20°C for silicone surface to relax.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect the connector (1).
Push in retaining spring (3) on both sides and unlock the lock (4) by means of a screwdriver.
Release the low beam sensor.
Slowly detach the low beam sensor (1) from the holder (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to silicone surface.
A damaged silicone surface can lead to malfunctioning of the rain-light-solarcondensation sensor.
- Do not tap or damage the silicone-coated surface on the rain-light-solarcondensation sensor.
- After loosening lock, wait approx. 30 min. at 20°C for silicone surface to relax.
Courtesy of BMW OF NORTH AMERICA, INC.

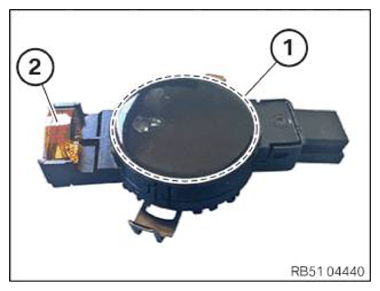

Check the silicone-coated surface (1) and the PCB (2) on the low beam sensor for damage.
When replacing windshield: Immediately install the low beam sensor on the new windshield.
