Removing the 12-V power socket in the luggage compartment

Preliminary work

• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

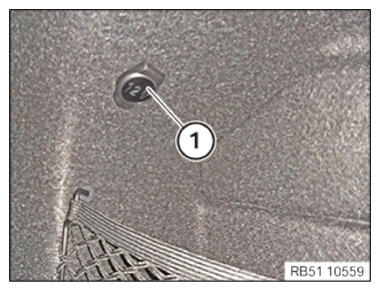

• Release the 12 V power socket on the retaining ring (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Remove the 12-V power socket (1) from the luggage compartment wheel arch trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
