Installing the 12 V socket in the luggage compartment
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

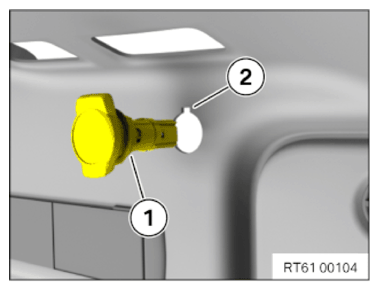

- Install 12 V socket (1) in the luggage compartment wheel arch trim panel.
- Pay attention to the guide (2) in the luggage compartment wheel arch trim panel.

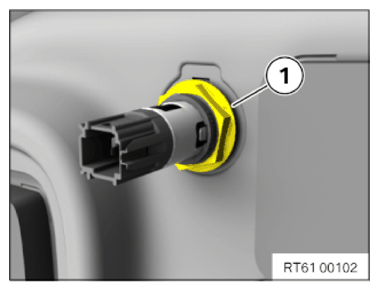

- Tighten the 12 V power socket on the retaining ring (1).
TIGHTENING TORQUES SPECIFICATION
| 12V socket on the luggage compartment wheel arch trim panel | ||
| Retaining ring | tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
