Installing the fanfare horn
NOTE:
TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.
Only replace the fanfare horn complete with the holder.

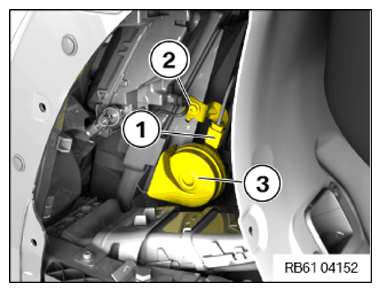

- Position the fanfare horn (3) correctly and tighten the screw (2).TIGHTENING TORQUES SPECIFICATION
Fanfare horn to support for bumper cover M6x20 screw Tightening torque 8.8 Nm - Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
