Remove the brake light switch
Preliminary work
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .

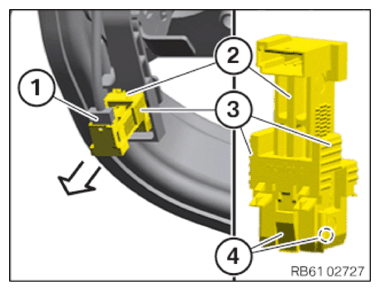

- Unlock plug connection (1) and disconnect.
- Operate and hold brake pedal
- Pull brake light switch (2) from holder (3) in the arrow direction.
- Press together detents (4) and unclip holder (3) from the brake pedal.
