Installing both sport leather steering wheel switches
NOTE:
The operations shown only for one side must be carried out on both sides.

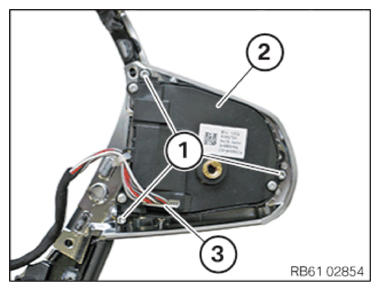

- Position the switch (2)
on the design trim and tighten with screws (1)
.TIGHTENING TORQUES SPECIFICATION
MFL switch Screw TS5x12 tightening torque 1.5 Nm - Connect connectors (3) and lock.
Follow-up work
- Refer to INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
