Installing the switch combination for seat adjustment

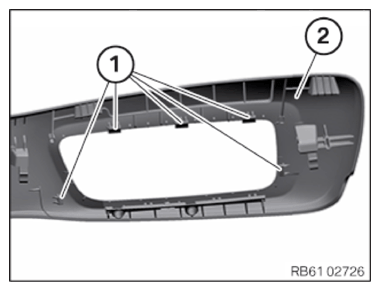

• Check the snap-in lugs (1) for damage and replace the seat trim (2) if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

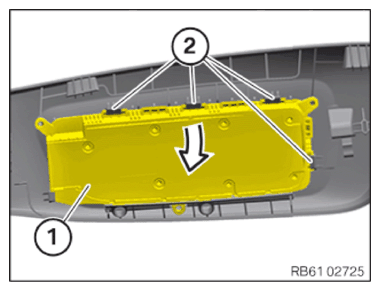

• Install the switch combination (1) in arrow direction.
• Check the detents (2) for a correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING OUTER COVER ON FRONT SEAT .
