Installing the power window switch on the passenger's side

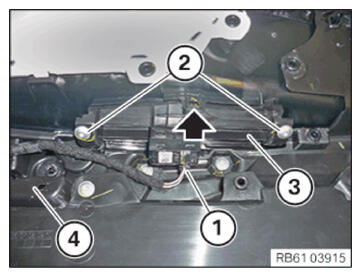

• Position the power window switch (3)  on the door trim panel (4)  and snap it in the detent (arrow).
• Tighten the screws (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Power window switch on door trim panel
  Screw	Tightening torque	1.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1)  and lock.

Follow-up work

• Refer to INSTALLING THE SOUND INSULATION ON FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
