61 31 117 Removing and installing/replacing power window switch on driver's side
>>
When replacing the left power window switch: remounting switch trim
When replacing the left power window switch: remounting switch trim

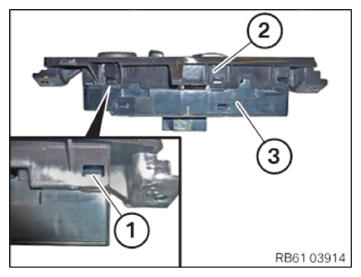

Release all the detents
(1)
on both sides.
Remove the switch trim
(2)
from the power window switch
(3)
.
Replace the power window switch
(3)
.
Parts:
Power window switch
Position the power window switch
(3)
on the switch trim
(2)
and clip in at the detents
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
