61 31 084 Removing and installing/replacing the switch for the power tailgate
>>
Remove the power tailgate switch
Remove the power tailgate switch

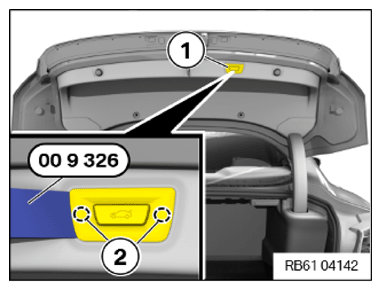

Unclip the switch (1) for automatic tailgate operation
at the lateral detents (2) with special tool
0 496 570 (00 9 326)
.
Courtesy of BMW OF NORTH AMERICA, INC.

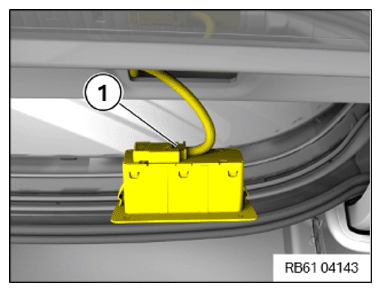

Unlock plug connection (1) and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
