Remove light operating unit
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work

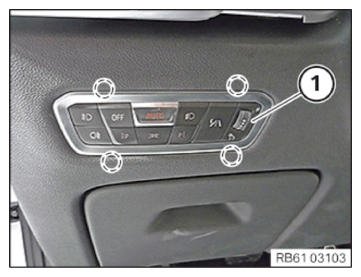

- Unclip light operating unit (1) at the marked positions from the rear.

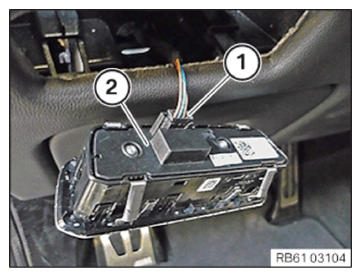

- Unlock the connector (1) on the light operating unit (2) and disconnect it.
