Installing the system battery

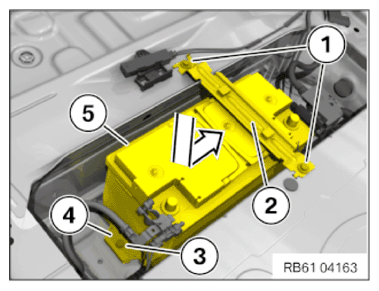

• Insert the system battery (5) in direction of arrow.
• Install the battery carrier (4).
• Tighten down screw (3).
• Position the battery roll-over bar (2).
• Tighten down screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

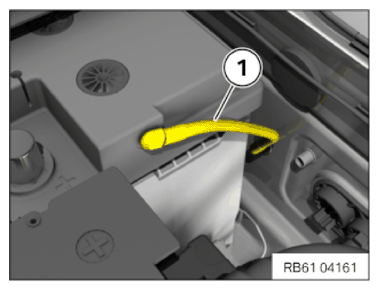

• Insert the vent hose (1) into the opening on the system battery.

Courtesy of BMW OF NORTH AMERICA, INC.

Check the vent holes of the battery

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check if the ventilation opening (1) is correctly closed with a dummy plug.

Result

» No dummy plug.

Measure

• Close the vent hole (1) correctly with a dummy plug.

Check

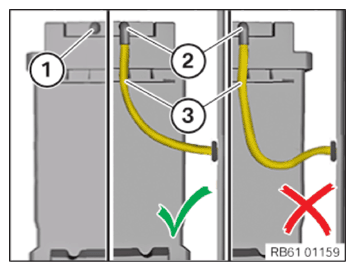

• Check whether the vent hose (3) is correctly connected to the ventilation opening (2).

Result

» The vent hose (3) is not correctly connected.

Measure

• Connect the vent hose (3) correctly to the ventilation opening (2).

Check

• Check if the vent hose (3) is laid with a slope towards the outside (no siphon formation).

Result

» The vent hose (3) is not routed correctly as shown on the right side.

Measure

• Route the vent hose (3) correctly as shown in the center.

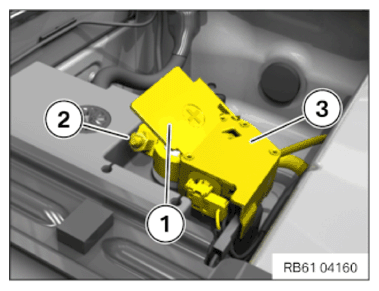

• Position the positive battery cable (3) on the positive battery terminal.
• Tighten nut (2).
• Close the positive terminal cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

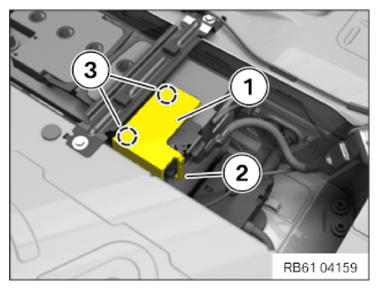

• Check guides (1) and the detent (3) on the protective cap (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Guides (1) or detents (3) are damaged.

Measure

• Replace protective cap (2).

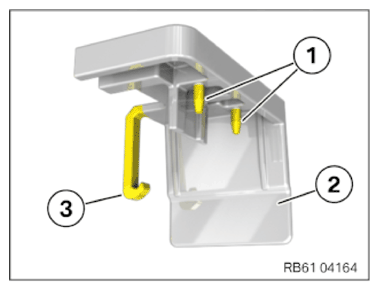

• Insert the guides (3) of the protective cap (1) into the associated openings on the positive battery terminal.
• Clip the protective cap (1) with the detent (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to REGISTER BATTERY CHANGE .
