Crimping of NanoMQS contacts (MQS)

Special tools required:

2 407 379
2 407 378
0 496 833
0 494 159
0 496 849
0 494 158

Order number: 83 30 2 407 379

NOTE: The storage location must be selected individually.

Courtesy of BMW OF NORTH AMERICA, INC.

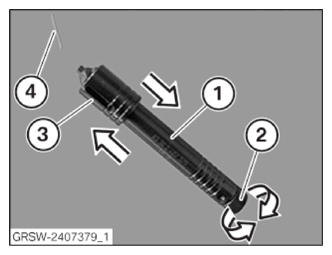

Application of tool to strip off insulation

With the tool, cables with the following cross-section can be stripped of their insulation:

0.13 mm² - 0.17 mm²
0.22 mm² - 0.50 mm²

The enclosed operating instructions include instructions for the use of the tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Die-plate

Order number: 83 30 2 407 378

NOTE: Insert the matrix so that the BMW part number of the matrix and handle are facing the same way!
The tool set case is the storage location of the die-plate (83 30 0 496 833).
Correct operation is imperative because the components are very small.

Courtesy of BMW OF NORTH AMERICA, INC.

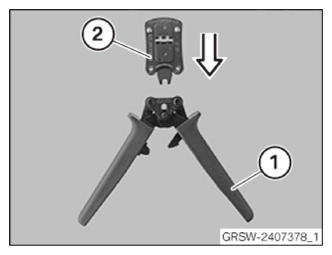

Matrix and handle

Handle
Die-plate

The enclosed operating instructions include instructions for the use of the crimping pliers.

NOTE: Only use the matrix only in combination with one of the two existing handles (83 30 0 494 159 or 80 30 0 496 849) from the tool kits (83 30 0 494 158 or 83 30 0 496 833).

Courtesy of BMW OF NORTH AMERICA, INC.
