Connector housing, LCC contact (load current contact)

Special tools required:

• 61 0 317

Socket housing:

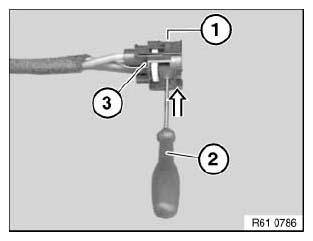

Press lock (1) with suitable tool (2) in arrow direction out of socket housing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Pull lock (1) out of socket housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 61 0 317  into socket housing (1) and pull out wiring with LCC contact (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 61 0 317  into pin housing (1) and pull out wiring with LCC contact (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
