Install front intake pipe

• Replace O-rings.

  Parts:  O-rings

• Feed in and correctly position the intake pipe (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

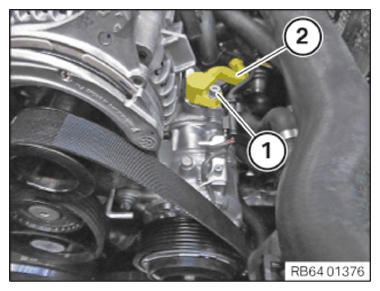

• Place the intake pipe (2) on the air conditioning compressor.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

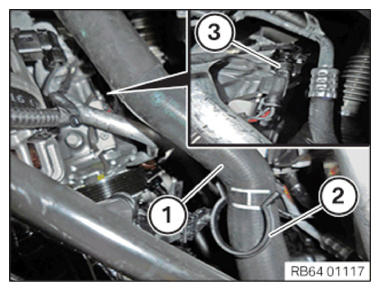

• If necessary, insert coolant hose (1) into holder (2).
• Connect connectors (3) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

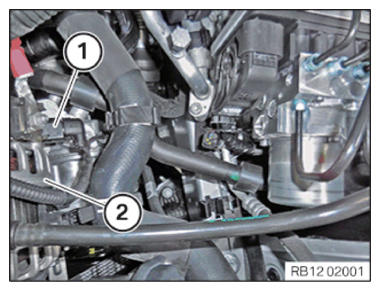

• Connect the connector (1) to the alternator (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE AIR CONDITIONING COMPRESSOR (PARTIALLY INSTALLED) .
• Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
• Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to EVACUATING AND CHARGING CONDITIONING .
