Installing the air conditioning compressor (partially installed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Preparing for the installation of the air-conditioning compressor

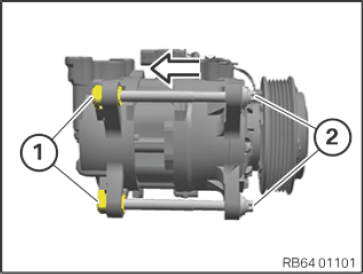

- Screw the screws (2) into the threaded support bushings (1).
- Push back the threaded support bushings (1) with the help of screws (2) slightly in the arrow direction.
- Unscrew the screws (2) out of the threaded support bushings (1).

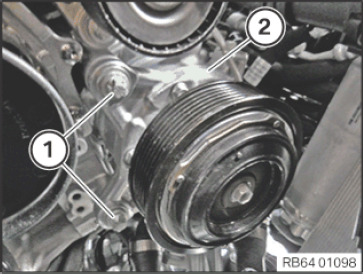

- Correctly position the air conditioning compressor (2).
- Tighten down screws (1).

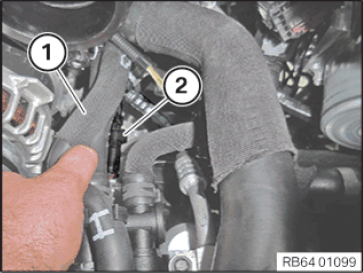

Air conditioning compressor in component carrier M10 Tightening torque 38 Nm - Slide the coolant hose (1) slightly to the side.
- Connect connectors (2) and lock.
