Installing the pressure line between the air conditioning compressor and the air conditioning condenser
- Replace O-rings.
Parts: O-rings

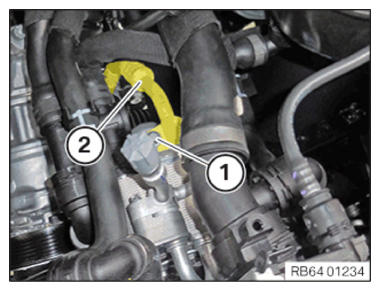

- Feed in and correctly position the pressure line (2) between the air conditioning compressor and the air conditioning condenser.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant lines to air conditioning condenser/connecting piece | ||
| M6 | Tightening torque | 13 Nm |
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

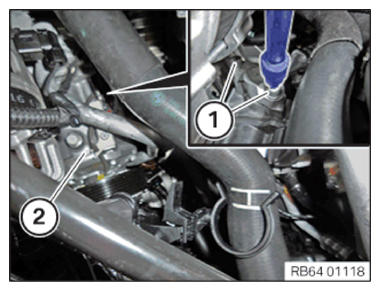

- Position the refrigerant lines on the air conditioning compressor (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line on air conditioning compressor | ||
| M8 | tightening torque | 19 Nm |
- Connect connectors (3) and lock.
- If necessary, insert the coolant hose (1) into the holder (2) and position it correctly.
- Connect the connector (1) to the alternator (2) and lock.
Follow-up work
- Refer to SECURING THE REFRIGERANT LINE TO THE CONNECTING PIECE .
- Refer to INSTALLING THE AIR CONDITIONING COMPRESSOR (PARTIALLY INSTALLED) .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to EVACUATING AND CHARGING CONDITIONING .
