Installing air conditioning condenser

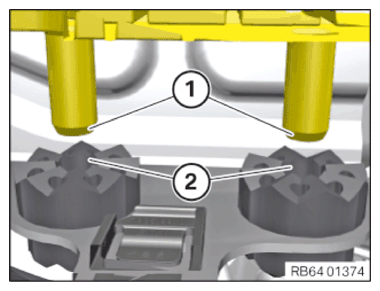

- Feed the air conditioning condenser (1)
at the bottom correctly into the rubber mount (2)
.
- Insert the air conditioning condenser (2) from above and position it correctly.
- Slide the coolant hoses (1) onto the air conditioning condenser (2) and lock.
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Air conditioning condenser holder on body | ||
| Nut M6 | tightening torque | 8 Nm |
| M6 screw | tightening torque | 8 Nm |
- Replace O-rings.
Parts: O-rings
- Fit the refrigerant lines and tighten screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Refrigerant lines to air conditioning condenser/connecting piece | ||
| M6 | Tightening torque | 13 Nm |
Follow-up work
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to IF INSTALLED: SECURING THE ENGINE OIL COOLER .
- Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to EVACUATING AND CHARGING CONDITIONING .
