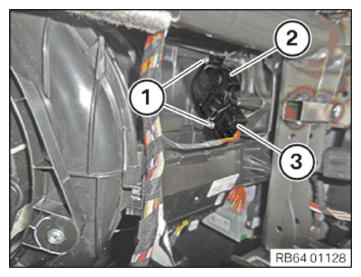

Installing the fresh air/recirculated air flap motor (M16)
- Fresh air/recirculated air flap motor: (2)
- Tighten the screws (1).
- Connect connector (3).
Follow-up work
- Refer to INSTALLING THE BLOWER FOR THE HEATING AND AIR-CONDITIONING UNIT .
- Refer to VEHICLES WITH AIRBAG MODULE: INSTALLING KNEE AIRBAG .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to ADDRESSING THE CONTROLLER DRIVE .
