Install the blower for the heating and air-conditioning unit

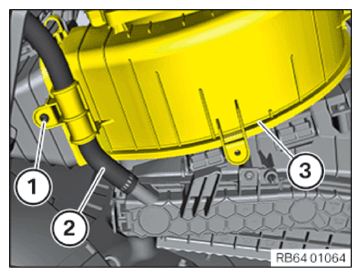

• Position the housing of the blower motor (3)  .
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the hose (2)  at the housing of the blower motor (3)  .

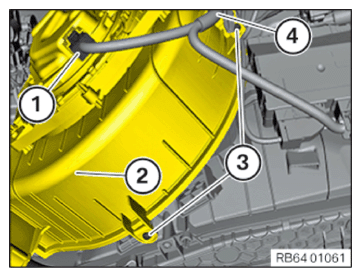

• Connect and lock plug connection (1)  of the blower motor (2)  .
• Tighten down screws (3)  .

• Secure the cable clip (4)  on the housing of the blower motor (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to VEHICLES WITH AIRBAG MODULE: INSTALLING KNEE AIRBAG .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
