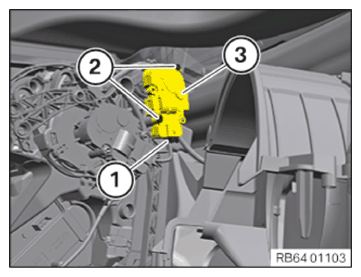

Installing defroster flap motor (M61)

• Install the defroster flap motor (3)  and position correctly.
• Tighten screws (2)  .
• Connect connectors (1)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BLOWER FOR THE HEATING AND AIR-CONDITIONING UNIT .
• Refer to VEHICLES WITH AIRBAG MODULE: INSTALLING KNEE AIRBAG .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to ADDRESSING THE CONTROLLER DRIVE .
