Installing the air distribution damper motor on the right (M7a)

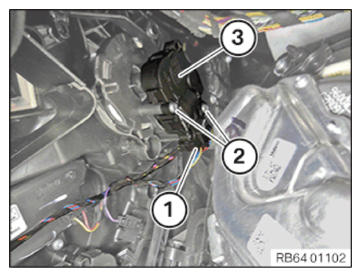

- Correctly position the right air distribution flap motor (3) and tighten the screws (2).
- Connect and engage connector (1).
Follow-up work
- Refer to INSTALLING THE BLOWER FOR THE HEATING AND AIR-CONDITIONING UNIT .
- Refer to VEHICLES WITH AIRBAG MODULE: INSTALLING KNEE AIRBAG .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to ADDRESSING THE CONTROLLER DRIVE .
