Lifting the vehicle using a vehicle lift with running rails
WARNING:
Vehicle falling down from a vehicle lift
.
Mortal hazard!
Mortal hazard!
- Observe Owner's Manual for vehicle hoist.
- Do not exceed the approved load-carrying capacity and weight distribution of the vehicle lift.
- Depending on the load situation of the vehicle: Perform weight compensation, particularly during removal of heavy components, e.g. engine.
- Make sure the vehicle lift complies with the relevant statutory or country-specific accident prevention provision and is serviced according to the regulations.
- Observe the instructions of the repair instructions when positioning the swivel arms.
WARNING:
Car may slip off the vehicle hoist where components are supported
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure specific weight compensation on the vehicle.
NOTE:
RISK OF DAMAGE
Component damage when raising the vehicle using a vehicle lift .
Components can become damaged when lifting a vehicle with a vehicle lift .
Component damage when raising the vehicle using a vehicle lift .
Components can become damaged when lifting a vehicle with a vehicle lift .
- Observe the instructions of the repair instructions when positioning the swivel arms.
- Before driving onto a vehicle lift, make sure there is sufficient ground clearance between the vehicle lift and the vehicle.
NOTE:
RISK OF DAMAGE
Component damage when driving onto a vehicle lift with rails
Components on the vehicle can be damaged when driving onto a vehicle lift with rails .
Component damage when driving onto a vehicle lift with rails
Components on the vehicle can be damaged when driving onto a vehicle lift with rails .
- Ensure safety when driving onto a vehicle lift with a second person.
NOTE:
TECHNICAL INFORMATION
Vehicles can be lifted at the jacking points with floor jacks and vehicle lifts.
Vehicles can be lifted at the jacking points with floor jacks and vehicle lifts.
- Check the jacking points (1) for damage and replace, if necessary.
Parts: Jacking points
- Slowly drive onto the ramp of the vehicle lift with running rails.

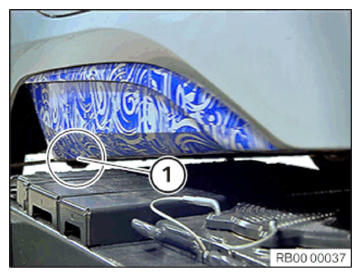

The lower edge (1) of the bumper cover must not get damaged.
- Slowly drive onto the running rails of the vehicle lift.

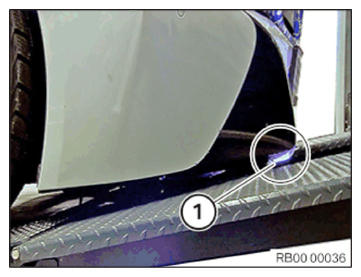

The lower edge (1) of the rocker panel cover must not get damaged.
- Drive the vehicle onto the running rails of the vehicle lift so that it is centered and park it.
- Secure vehicle to prevent it rolling.
- Raise vehicle.
» The vehicle is sitting on its wheels.
NOTE: TECHNICAL INFORMATION
Rubber blocks must be paced under the jacking points when lifting vehicles with vehicle lifts with rails and secondary stroke. - Position the rubber block (2) under the jacking point (1). Make sure not to damage adjacent components.
- Lift the vehicle using the secondary lift on the vehicle lift with running rails.
» The wheels are suspended in the air.
