Lift vehicle using a vehicle lift with swivel arms

NOTE: TECHNICAL INFORMATION
Vehicles can be lifted at the jacking points with floor jacks and vehicle lifts.

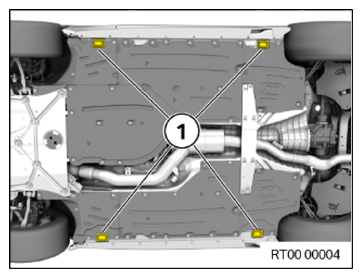

Check the jacking points (1) for damage and replace, if necessary.
Parts: Jacking points

Courtesy of BMW OF NORTH AMERICA, INC.
Stop vehicle in the center between the swivel arms.
Secure vehicle to prevent it rolling.

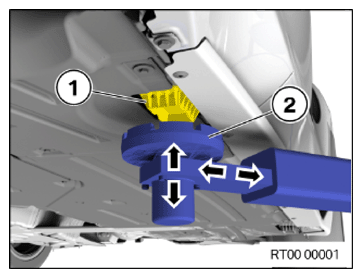

Position mounting plate (2) of the swivel arm of the vehicle lift in the center under jacking point (1). Make sure not to damage adjacent components.
Repeat this work step for the other swivel arm.

Courtesy of BMW OF NORTH AMERICA, INC.
Raise vehicle.
