Check the components of the steering

Check

• Shift the steering wheel in both directions while checking for play.

  Courtesy of BMW OF NORTH AMERICA, INC.

Desired state

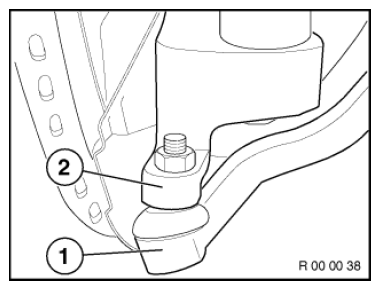

• There is no play between the tie rod joint (1) and tie rod arm (2)  .

Result

» There is play.

Measure

• Eliminate possible defects for a separate charge after discussion with the customer.

Check

• Check Bellows and sleeves for damage (e.g. cracks and holes) and tightness.
• Check bellows for missing retaining straps.

Result

» Damage or leaks.

Measure

• Eliminate possible defects for a separate charge after discussion with the customer.

Follow-up work

• Refer to ADDING THE COOLANT LEVEL AND CHECKING THE COOLANT COMPOSITION .
• Refer to CHECKING ENGINE COMPARTMENT FROM ABOVE FOR LEAKS .
• Refer to TOP OFF THE WASHER FLUID FOR THE WASHER SYSTEM .
• Refer to PROGRAMMING WHEEL ELECTRONICS (ONLY WHILE USING TIRE PRESSURE MONITOR SA2VB) .
• Refer to PERFORM THE CBS RESET .
• Refer to CHECKING FOR TRAFFIC SAFETY AND PERFORMING TEST DRIVE .
