11 00 050 Removing and installing engine (M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 0 000
51 2 16

Instructions for disconnecting and connecting battery.

Disconnect negative battery lead.

Move engine hood to assembly position:

NOTE: The following work must be carried out with a second person assisting. Work instruction applies to left and right sides.

Gently raise retaining clip and simultaneously push upwards.

Fig 1: Moving Engine Hood To Assembly Position

Courtesy of BMW OF NORTH AMERICA, INC.

Hold engine hood, unhook damper on hood.

Slide special tool 51 2 160 over damper.

Open engine hood completely and reconnect damper with special tool 51 2 160 to hood.

Fig 2: Sliding Special Tool 51 2 160 Over Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Remove microfilter.

Open cable duct on lower section of microfilter housing (2) and feed out cable(s).

Release screws (1) and remove lower section of microfilter housing (2).

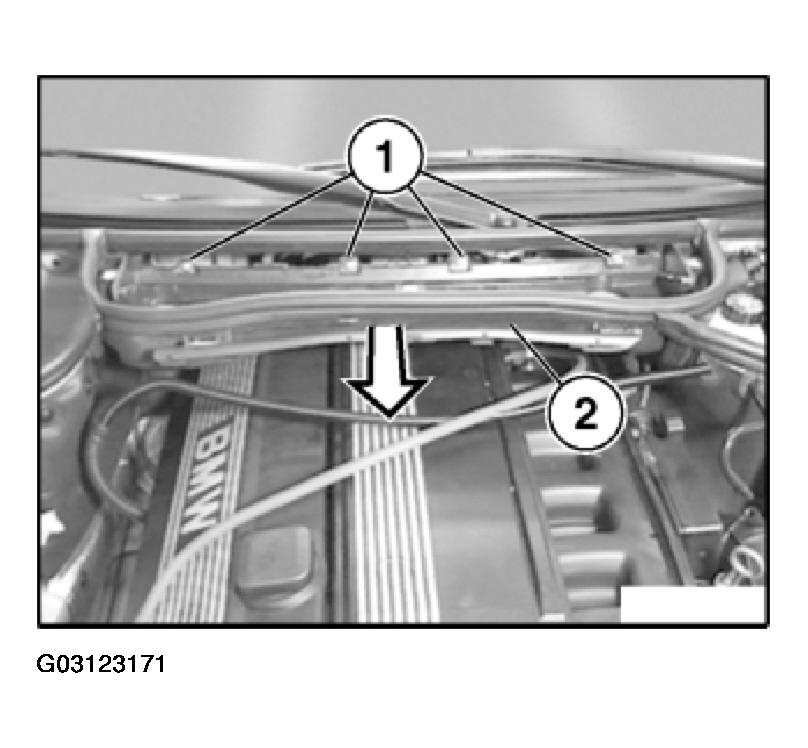

Fig 3: Releasing Screws & Removing Lower Section Of Microfilter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove engine underguard. 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)

Remove transmission, refer to REMOVAL & INSTALLATION .

Remove A/C compressor drive belt. See 11 28 050 Replacing A/C compressor drive belt (M52 / S52 / M52TU / M54 / M56)

Remove A/C compressor from bearing block and tie back to one side. See 64 52 520 REMOVING AND INSTALLING / REPLACING COMPLETE A/C COMPRESSOR

NOTE: Lines remain connected.

Drain and dispose of coolant. See 17 00 005 DRAINING AND ADDING COOLANT (M54, M56)

NOTE: The water drain plug is located on the exhaust side on cylinder 2 in the engine block.

Installation:

Replacing sealing ring on water drain plug.

Pull locks (1) and disconnect water hoses.

Installation:

Remove radiator. See 17 11 000 REMOVING AND INSTALLING RADIATOR (M52TU, M54, M56)

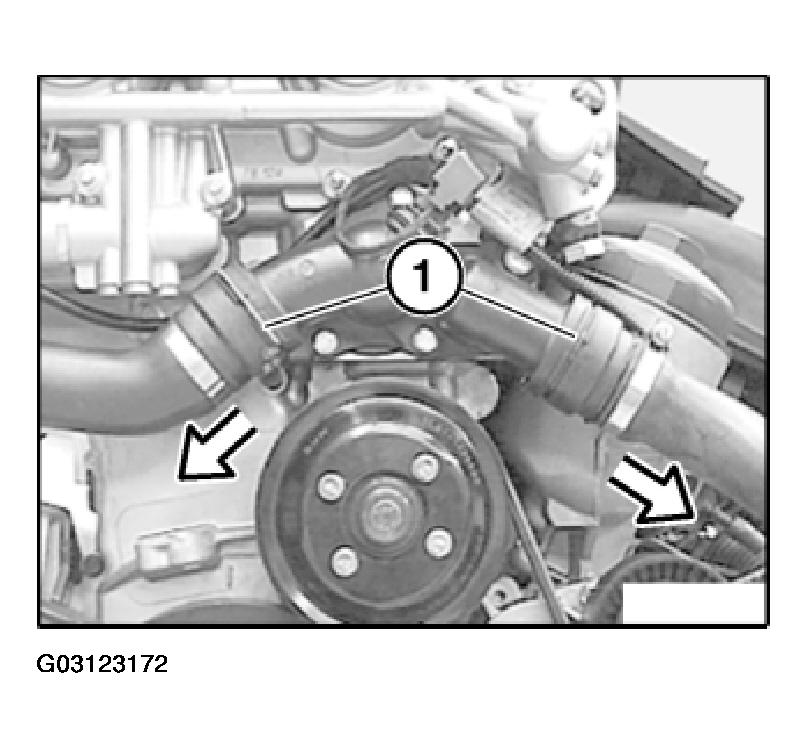

Fig 4: Pulling Locks & Disconnecting Water Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover from fuel injectors.

Remove both oxygen monitor sensors. See 11 78 613 Replacing both oxygen monitor sensors (M52TU / M54 / M56)

Remove intake air manifold. See 11 61 050 Removing and installing intake air manifold (M54)

Disconnect water hoses from water pipe and from heating valve.

Unfasten engine section of wiring harness and place to one side with cable duct.

Unfasten reservoir for power steering unit and tie up to one side.

NOTE: Lines remain connected.

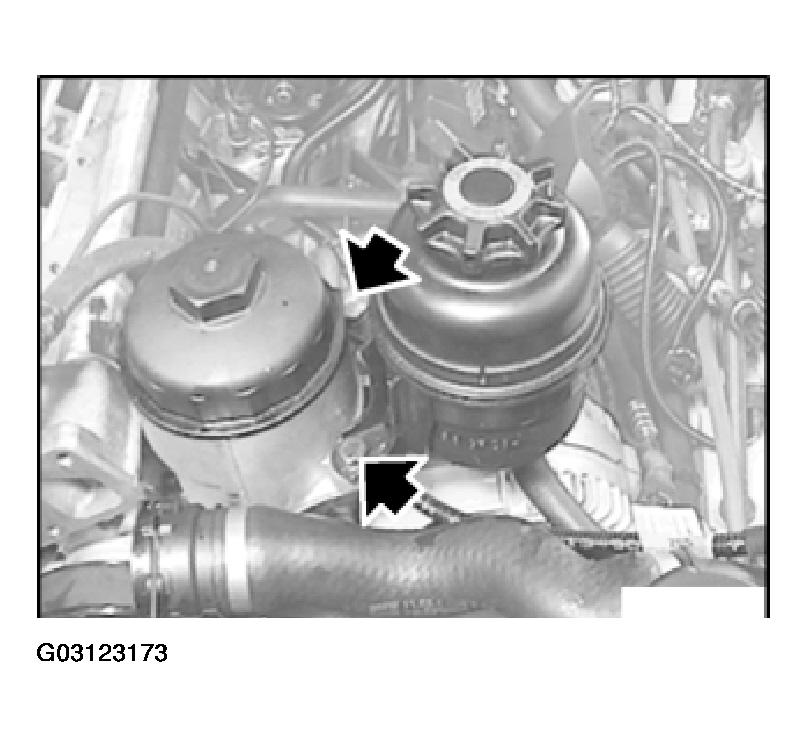

Fig 5: Identifying Reservoir For Power Steering

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan clutch with fan impeller from water pump. See 11 52 020 Removing and installing/replacing fan clutch (S52 / S54 / M52 / M52TU / M54 / M56)

Remove alternator drive belt. See 11 28 010 Replacing alternator drive belt (M52 / S52 / M52TU / M54 / M56)

Remove vane pump for power steering and tie back to one side. See POWER STEERING VANE PUMP (M52/M54)

NOTE: Lines remain connected.

Suspend engine from special tool 11 0 000.

Fig 6: Suspending Engine From Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Front and rear suspension arrangement

Fig 7: Identifying Front & Rear Suspension Arrangement

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten right ground wire.

Unscrew left and right engine mounts.

Carefully lift out engine.

Fig 8: Unfastening Right Ground Wire

Courtesy of BMW OF NORTH AMERICA, INC.
