36 10 715 Checking Rim For Face And Radial RUNOUT

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Check front or back wheel for face and radial runout. Refer to 36 10 209 CHECKING FRONT AND REAR WHEEL FOR FACE AND RADIAL RUNOUT .

Pull tire off rim.

Remove fitted balancing weights.

Remove dirt from rim well and rim flange.

Mount disk wheel in balancing machine.

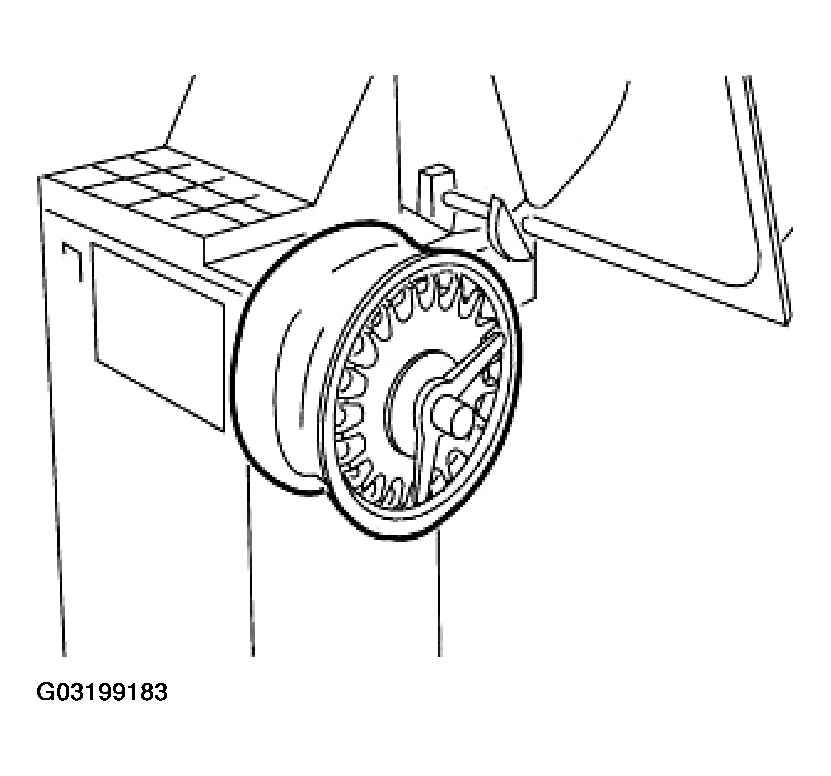

Fig 1: Installing Disk Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel centre supplied with corresponding balancing machine.

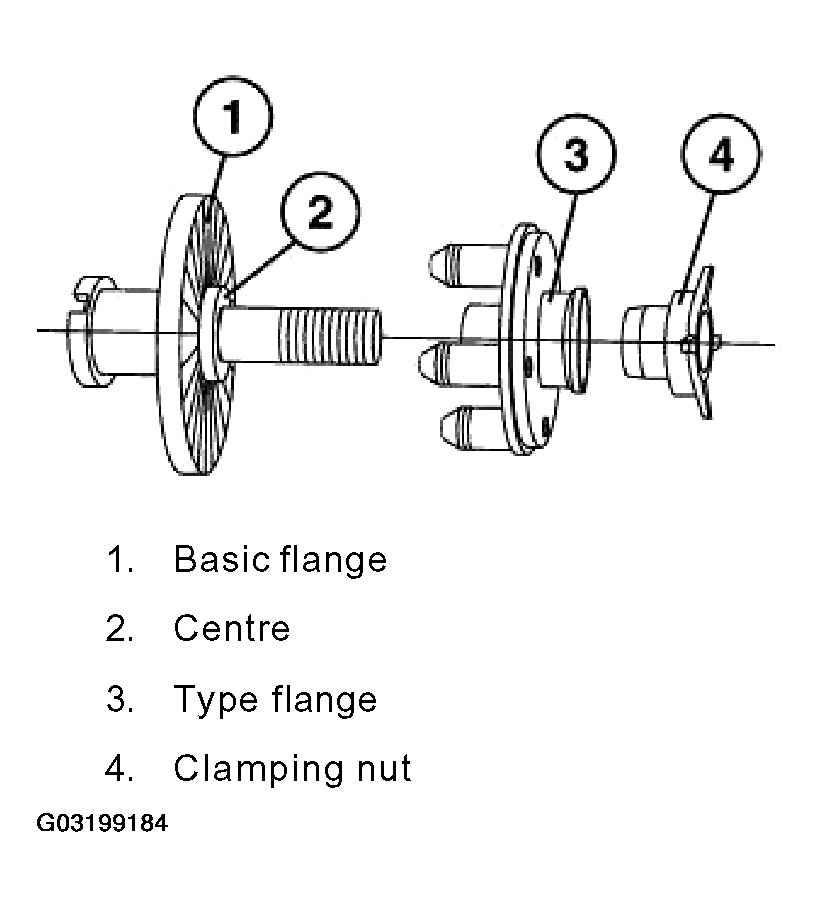

Fig 2: Identifying Wheel Centre

Courtesy of BMW OF NORTH AMERICA, INC.

Place dial gauge sensor on rim shoulder.

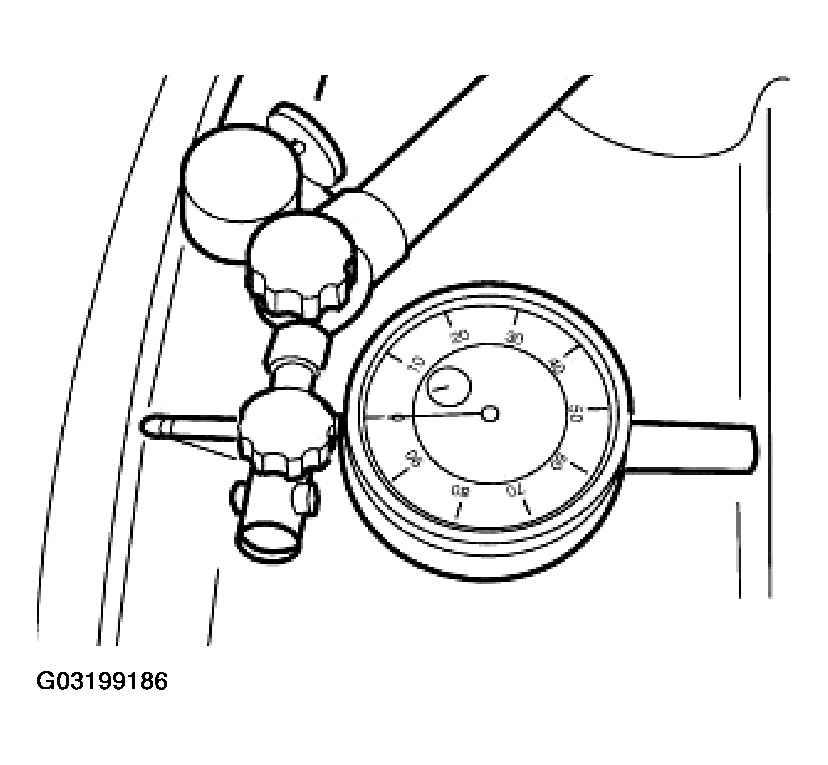

Fig 3: Placing Dial Gauge Sensor On Rim Shoulder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn wheel by hand and measure maximum radial runout, refer to WHEEL AND TIRES - TECHNICAL DATA .

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

Position sensor on rim flange.

Fig 4: Installing Dial Gauge To Rim Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Turn wheel by hand and measure maximum lateral runout, refer to WHEEL AND TIRES - TECHNICAL DATA .

Carry out measurement on both rim flanges.

NOTE: Dial gauge must be vertical to rim flange.

IMPORTANT: Avoid transformation errors during subsequent installation tasks. Refer to 36 10 508 STATIONARY WHEEL BALANCING (WHEEL REMOVED) .
