36 10 209 Checking Front And Rear Wheel For Face And Radial RUNOUT

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 030

IMPORTANT: Wheel bearing must be OK!

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

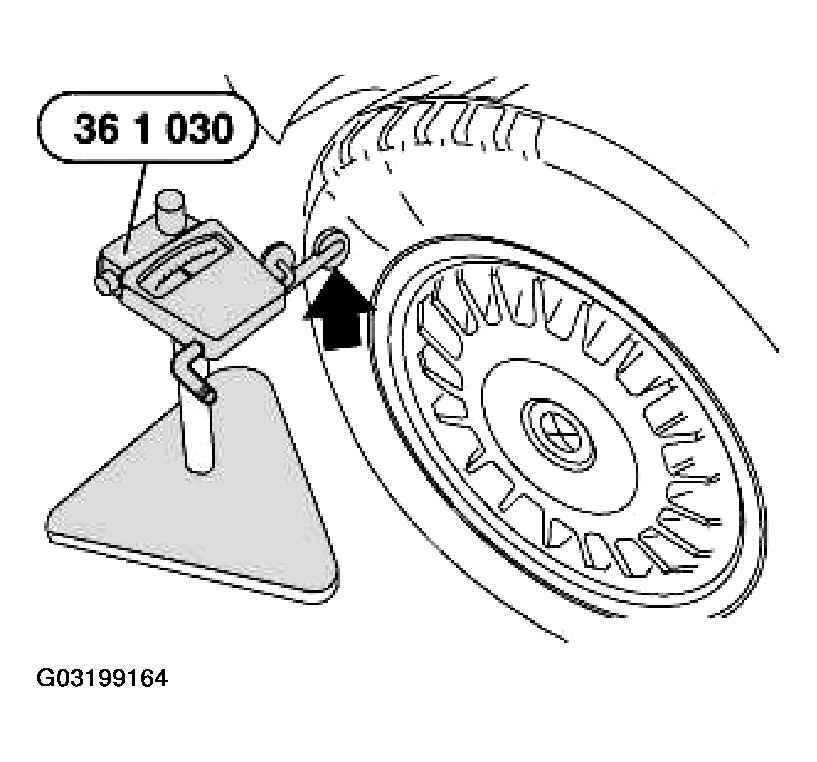

Fig 1: Checking Wheel Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

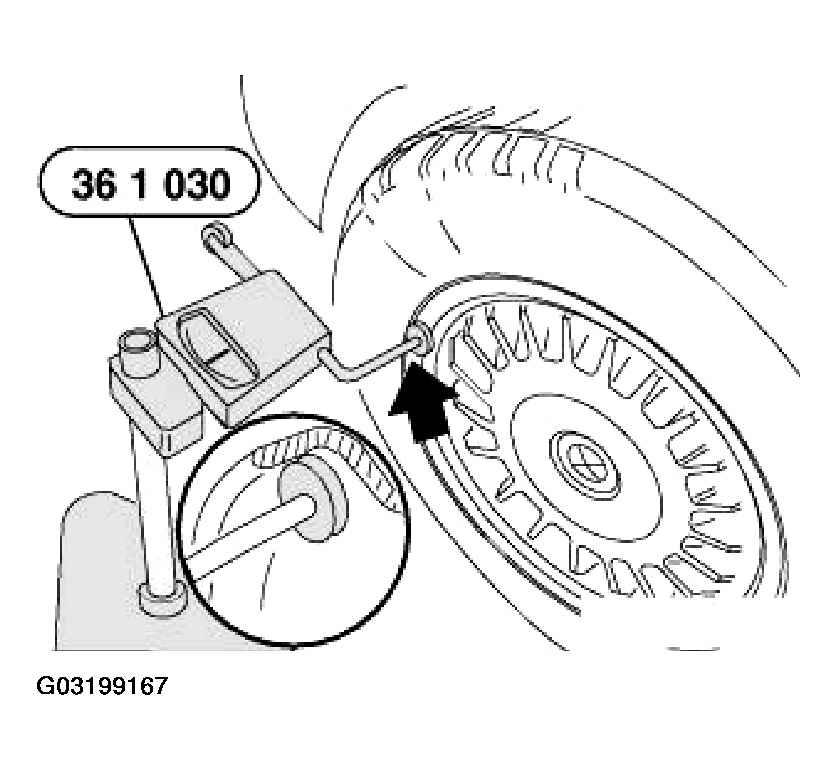

Fig 2: Checking Wheel Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

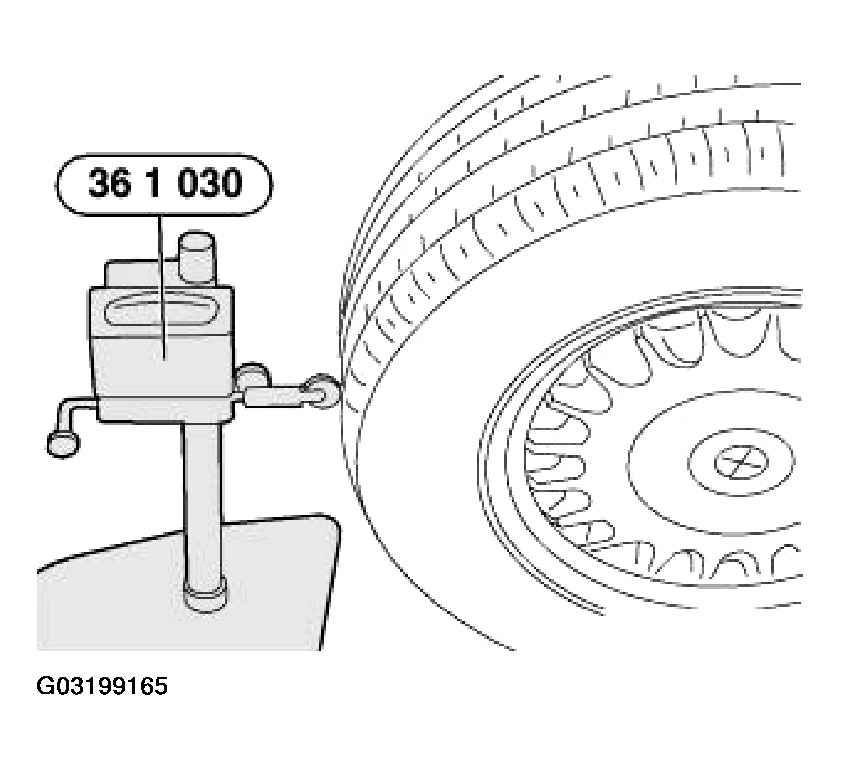

Fig 3: Checking Rim Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

Fig 4: Checking Rim Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.
